- Size: 30CBM
- Place of Origin: China
- Brand Name: SOCMA
- Model Number: HNT110-2C
- Weight: 13000.000 kg

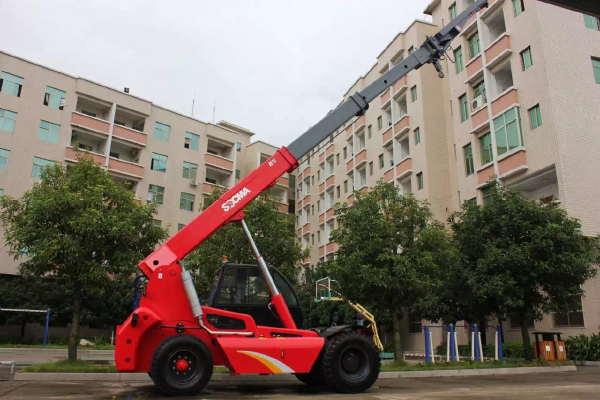

HNT110-2C Telescopic Crane Loader
Introduction
The HNT110-2C Telescopic Crane Loader works with front-wheel drive, rear-wheel steering, rigid suspension; adopt total four hydromechanical drive gear-boxes in the back and front as the transmission, hydraulic power steering, caliper disc brake; the working device is composed of two quadrilateral portable telescopic arms and a rotary boom. It is specially used for lift on/off the stone slab container and it can also be used as a normal crane. It is widely available for the factory, dock, goods yard, forestry center, building materials industry, warehouse, logistics and so on. It is a handling machinery of wide application and high efficiency.
Specifications
Items | Technical Parameter | |||||||||||||
Rated Load | ≤ 11000kg | |||||||||||||
The Distance of Load Center(Tyre-fore to load center)/Hoisting Weight | mm | 500 | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | ||||||
Kg | 11000 | 10000 | 8500 | 6000 | 4000 | 3500 | 3000 | |||||||
Max.Lifting Height of Main Hook(Main hook to ground)/Max Lifting Height of Full-extended Boom(Front Lifting Point) | Fork | Boom | ||||||||||||
7400mm | 7300/10440mm | |||||||||||||
Max.Outspread of Main Hook(Horizontal)(Tyre-fore to main hook)/Max Reach of Full-extended Boom | Fork | Boom | ||||||||||||
6900mm | 4900mm/8400mm | |||||||||||||
Max.Traveling Speed | 25km/h | |||||||||||||
Min.Ground Clearance | 365mm | |||||||||||||
Min.turning Radius | 6800mm | |||||||||||||
Grade Ability | ≥ 20% | |||||||||||||
The Angle of Lean Up/Down | Fork | 12°/20° | Boom | 24°/22° | ||||||||||
Tread | 1825mm | |||||||||||||
Wheel base | 2998mm | |||||||||||||
Deadweight | 13000kg | |||||||||||||
Overall Dimension (L×W×H) | 5400mm×2200mm×2500mm | |||||||||||||
Engine (Dongfeng Cummins)
| Type |
4BT3.9-C100 | ||||||||||||
| ||||||||||||||
Rated power |
75kw | |||||||||||||
| ||||||||||||||
Rated speed |
2200r/min | |||||||||||||
| ||||||||||||||
Exhaust |
3.9L | |||||||||||||
| ||||||||||||||
Tyre （ selectable ） | Front wheel | (9.00R-20) | ||||||||||||
| Rear wheel | (9.00R-20) | ||||||||||||
| ||||||||||||||
Note: The content and performance will be revised and the products will be improve without notice
