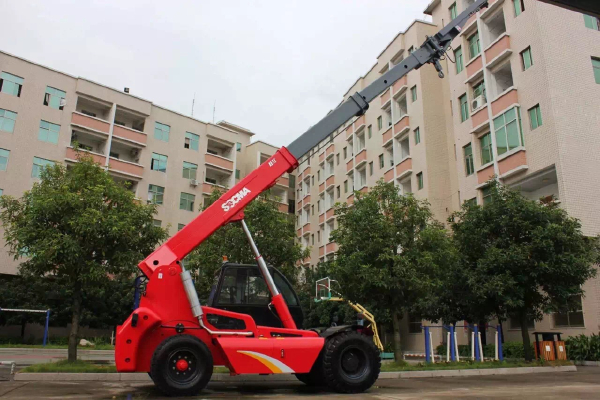

HNT110-2 Telescopic Crane Loader
Introduction:
The HNT110-2 Telescopic Crane Loader works with front-wheel drive, rear-wheel steering, rigid suspension; adopt total four hydromechanical drive gear-boxes in the back and front as the transmission, hydraulic power steering, caliper disc brake; the working device is composed of two quadrilateral portable telescopic arms and a rotary boom. It is specially used for lift on/off the stone slab container and it can also be used as a normal crane. It is widely available for the factory, dock, goods yard, forestry center, building materials industry, warehouse, logistics and so on. It is a handling machinery of wide application and high efficiency.
Specifications
Items | Technical Parameter | |||||||||
Rated Load | ≤ 11000kg | |||||||||
The Distance of Load Center(Tyre-fore to load center)/Hoisting Weight | mm | 500 | 1000 | 2000 | 3000 | 4000 | 5000 | 6000 | ||
Kg | 11000 | 10000 | 8500 | 6000 | 4000 | 3500 | 3000 | |||
Max.Lifting Height of Main Hook(Main hook to ground)/Max Lifting Height of Full-extended Boom(Front Lifting Point) | 6250mm/9200mm | |||||||||
Max.Outspread of Main Hook(Horizontal)(Tyre-fore to main hook)/Max Reach of Full-extended Boom | 2750mm/6000mm | |||||||||
Max.Traveling Speed | 25km/h | |||||||||
Min.Ground Clearance | 365mm | |||||||||
Min.turning Radius | 6800mm | |||||||||
Grade Ability | ≥ 20% | |||||||||
The Angle of Lean Up/Down | 12°/20° | |||||||||
Tread | 1825mm | |||||||||
Wheel base | 2998mm | |||||||||
Deadweight | 13000kg | |||||||||
Overall Dimension (L×W×H) | 5400mm×2200mm×2500mm | |||||||||
Engine (Dongfeng Cummins)
Engine (Yituo Dongfanghong)
（ selectable ）
| Type | 4BT3.9-C100 | ||||||||
LR4108G76 | ||||||||||
Rated power | 75kw | |||||||||
74kw | ||||||||||
Rated speed | 2200r/min | |||||||||
2400r/min | ||||||||||
Exhaust | 3.9L | |||||||||
4.6L | ||||||||||
Tyre （ selectable ） | Front wheel | 11.00-20(16PR) | ||||||||
(9.00R-20) | ||||||||||
Rear wheel | 11.00-20(16PR) | |||||||||
(9.00R-20) | ||||||||||
| ||||||||||
Note: The content and performance will be revised and the products will be improve without notice
