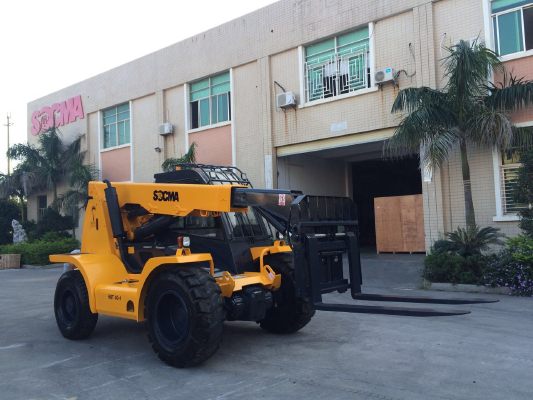

HNT40-4 Telescopic Forklift Loader/ Telescopic Crane Loader
Introduction:
HNT40-4 Type Telescopic Forklift Loader, which uses the four-wheel drive, the rigid suspension; The fluid mechanical drive, the hydraulic power changes with the hydraulic brake, the rear wheel changes. The operation installment is two quadrangle telescopic handle, has fork which fix could be side to move. Could use to pull in & out the box on the container, also for loading and unloading, Cargo stowing and short-haul handing.
This type could be operated under many kinds of working conditions, is excellent equipment for craning, transporting, loading and unloading on Industry and Mining,Enterprise, Construction, Materials, Harbor, Municipal Engineering. Also has the scoop, the hook ,the suspend arm and so on each kind is differently for the customer’s choice to install. Its loading and unloading and the cross-country performance is highly the universal forklift is unable to compare.
Specifications
Items | Technical parameter | |||||||
Max Hoisting Weight (with fork) | 4000kg | |||||||
mm/Kg | mm | 3500 | 4000 | 4500 | 5000 | 5500 | ||
The Distance of Load Center(Tyre-fore to load center of hook)/Hoisting Weight (with hook) | Kg | 3000 | 2750 | 2500 | 2250 | 2000 | ||
Max.Lifting Height of Main Hook(Main hook to ground) | front suspension point | upper face of fork | ||||||
9200mm | 6250mm | |||||||
Max Horizontal Reach | Tyre-fore to Front Lifting Point | Tyre-fore to Vertical Segment of Fork | ||||||
5500mm | 3200mm | |||||||
Max.Traveling Speed | 30km/h | |||||||
Min.Ground Clearance | 350mm | |||||||
Min.turning Radius | 7250mm | |||||||
Grade Ability | ≥ 20% | |||||||
The Angle of Lean Up/Down | 15°/25° | |||||||
Tread | 1900mm | |||||||
Wheel base | 2520mm | |||||||
Deadweight | 9440kg | |||||||
Overall Dimension (L×W×H) | 6100mm×2280mm×2700mm | |||||||
Engine (Dongfeng Cummins) | Type | 4BT3.9-C80 | ||||||
Rated power | 60kw | |||||||
Rated speed | 2000r/min | |||||||
Exhaust | 3.9L | |||||||
Tyre | Front wheel | 16/70-24(14PR) | ||||||
Rear wheel | 10.00-20(14PR) | |||||||
| ||||||||
Note: The content and performance will be revised and the products will be improve without notice
