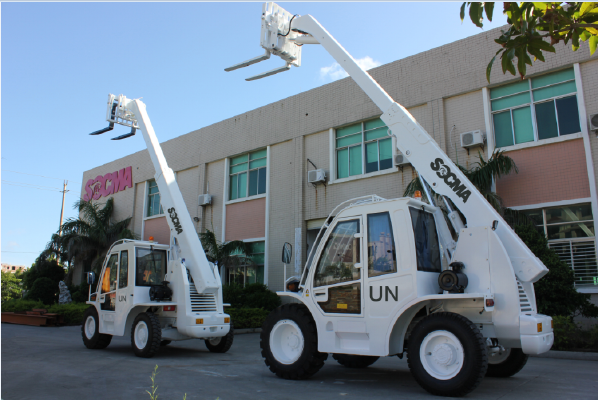

HNT35-4 Telescopic Forklift Loader
Introduction
HNT35-4 Type Telescopic Forklift Loader, which uses the four-wheel drive, the rigid suspension; The fluid mechanical drive, the hydraulic power changes with the hydraulic brake, the rear wheel changes. The operation installment is two quadrangle telescopic handle, has fork which fix could be side to move. Could use to pull in & out the box on the container, also for loading and unloading, Cargo stowing and short-haul handing.
This type could be operated under many kinds of working conditions, is excellent equipment for craning, transporting, loading and unloading on Industry and Mining,Enterprise, Construction, Materials, Harbor, Municipal Engineering. Also has the scoop, the hook ,the suspend arm and so on each kind is differently for the customer ’ s choice to install. Its loading and unloading and the cross-country performance is highly the universal forklift is unable to compare.
Specifications
Item | Technical Parameter | |
Rated load | 3500kg | |
Lifting load (Max.extend length) | 1250kg | |
Max.lifting height of basic arm | 4350mm | |
Max.lifting height of full extend arm | 6020mm | |
Max.traveling speed | 30km/h | |
Min.ground clearance | 350mm | |
Min.turning Diameter (center of outer wheel) | 15500mm | |
Gradeability | 30% | |
Deadweight | 8000kg | |
Overall dimension (L×W×H) | 6060mm×2270mm×2650mm | |
Engine (Dongfeng Cummins) | Type | 4BT3.9-C80 |
Rated power | 60kw | |
Rated speed | 2000r/min | |
Tyre | Front wheel | 16/70-24 |
Rear wheel | 10.00-20-14 | |
Note: The content and performance will be revised and the products will be improve without notice
