- Size: 139CBM
- Place of Origin: China
- Brand Name: SOCMA
- Model Number: HNF-350 (CPCD350)
- Weight: 43000.000 kg

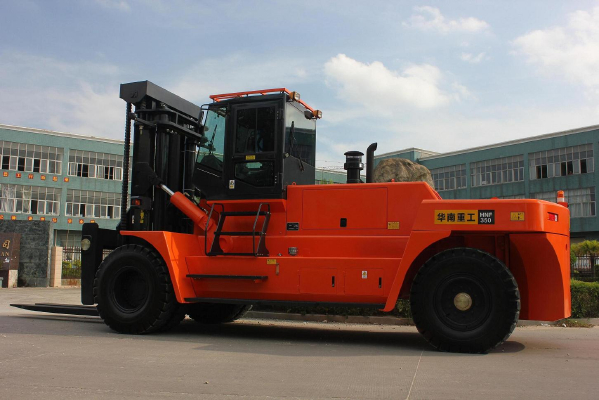

35 ton forklift (Model HNF-350)
Engine: WEICHAI WD10G240E21 engine, strong power, energy conservation and environmental protection.
Transmission & torque converter: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation.
Driven axle : reinforced driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
Steering system: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Braking system: use mature product from professional manufacturer, disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.
Hydraulic system: double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Explosion proof safety valve for pipeline ：avoid the pipeline bursting suddenly, ensure system working safety and reliability.
Control system: pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Cooling system: adopt independent transmission oil and hydraulic oil cooling, increasing system stability
Frame structure: Linde type exquisite workmanship &firm box-type frame, improve the transverse, longitudinal stability of vehicles.The vehicle get through the 3D finite element analysis, superior structure, reliable quality; the main welding parts through the nondestructive testing, effective coordination with the reinforced structure、bridge、box.
Fork: standard with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity.
Mast:Kalmartype internal-external mast, special all-round roller bearings, increase lifting performance.
Cab: Smooth and beautiful appearance, the cab uses new composite decoration materials, and match with air-conditioner, more open vision.
Parameters:
| Vehicle configuration |
| HNF-350 | |
Performance | Rated load |
| 35000 | |
Load center |
| 1250 | ||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 9700 | |
Width | mm | 3320 | ||
Height | mm | 4310 | ||
Mast lifting height | mm | 3500 | ||
Fork size (L*W*H) | mm | 2440X340X125 | ||
Min. turning radius | mm | 7260 | ||
Max. travel speed (with load) | Km/h | 28 | ||
Lifting speed (with load) | mm/s | 260 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 43000 | ||
Tyre | Front |
| 4X16.00-25/32PR | |
Rear |
| 2X16.00-25/32PR | ||
Wheel tread | Front | mm | 2810 | |
Rear | mm | 2450 | ||
Wheelbase | mm | 4800 | ||
Min. ground clearance | mm | 350 | ||
Engine | Model |
| WD10G240E21 | |
Rated power/rotate speed | KW/r.pm | 175/2200 | ||
Max. torque/rotate speed | N.m/r.pm | 1000 /1600 | ||
