- Size: 138CBM
- Place of Origin: China
- Brand Name: SOCMA
- Model Number: HNF-320 (CPCD320)
- Weight: 42000.000 kg

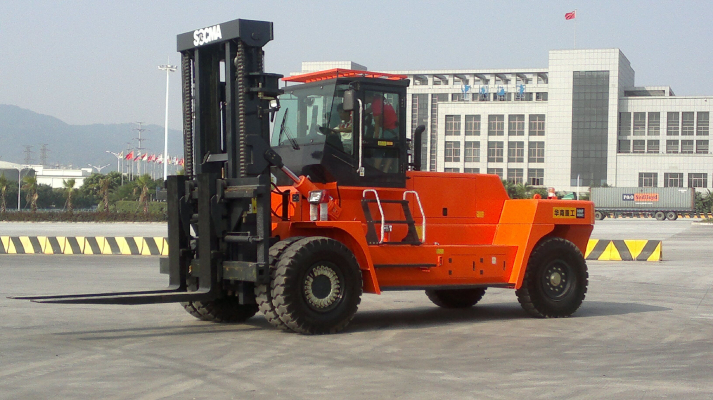

32 ton forklift (Model HNF-320)
Engine: WEICHAI WD10G240E21Engine, strong power, energy conservation and environmental protection.
Transmission & torque converter: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation.
Steering system: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Braking system: use mature product from professional manufacturer, disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermo stability performance when heavy loaded, braking effect stable.
Explosion proof safety valve for pipeline ：avoid the pipeline bursting suddenly, ensure system working safety and reliability.
Control system: pilot valve control device to make the work efficiency and reduce drivers’ labor intensity.
Cooling system: adopt independent transmission oil and hydraulic oil cooling,increasing system stability
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse, longitudinal stability of vehicles.The vehicle get through the 3D finite element analysis, superior structure, reliable quality; the main welding parts through the nondestructive testing, effective coordination with the reinforced structure、bridge、box.
Fork: standard with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity.
Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance.
Cab: Smooth and beautiful appearance, the cab uses new composite decoration materials, and match with air-conditioner, more open vision.
Parameters:
| Vehicle configuration |
| HNF-320 | |
Performance | Rated load |
| 32000 | |
Load center |
| 1250 | ||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 9690 | |
Width | mm | 3200 | ||
Height(mast lowered) | mm | 4250 | ||
Mast lifting height | mm | 3500 | ||
Fork size (L*W*H) | mm | 2440X320X110 | ||
Min. turning radius | mm | 7260 | ||
Max. travel speed (with load) | Km/h | 28 | ||
Lifting speed (with load) | mm/s | 260 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 42000 | ||
Tyre | Front |
| 4X14.00-24/28PR | |
Rear |
| 2X14.00-24/28PR | ||
Wheel tread | Front | mm | 2420 | |
Rear | mm | 2450 | ||
Wheelbase | mm | 4800 | ||
Min. ground clearance | mm | 350 | ||
Engine | Model |
| WD10G240E21 | |
Rated power/rotate speed | KW/r.pm | 175/2200 | ||
Max. torque/rotate speed | N.m/r.pm | 1000/1600 | ||
Note: the above data are subject to change without prior notice.
