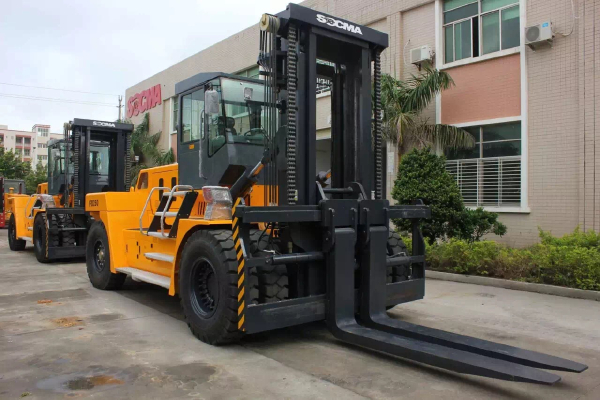

25 ton forklift (Model HNF-250)
Engine: Weichai WD10G220 Engine, strong power, energy conservation and environmental protection.
Transmission & torque converter: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation.
Driven axle : reinforced driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
Steering system: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Braking system: use mature product from professional manufacturer, disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.
Control system: pilot valve control device to make the work efficiency and reduce drivers’ labor intensity
Hydraulic system: double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Tyre : sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable
Fork: standard with hydraulic fork positioner, easy operation and reduce drivers’ labor intensity.
Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance
Cab: with air-conditioning and heating, and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation. damping luxury cab with sunroof, wide view and comfortable seats, flexible control.
Parameters:
Model | Unit | CPCD250 | ||
Vehicle configuration | HNF-250 | |||
Performance | Rated load |
| 25000 | |
Load center |
| 1250 | ||
Free lift | mm | 180 | ||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length | mm | 9190 | |
Width | mm | 3050 | ||
Height | mm | 3860 | ||
Mast lifting height | mm | 3500 | ||
Fork size (L*W*H) | mm | 2440X280X110 | ||
Min. turning radius | mm | 6700 | ||
Max. travel speed (with load) | Km/h | 28 | ||
Lifting speed (with load) | mm/s | 260 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 35000 | ||
Tyre | Front |
| 4X14.00-24/28PR | |
Rear |
| 2X14.00-24/28PR | ||
Wheel tread | Front | mm | 2200 | |
Rear | mm | 2390 | ||
Wheelbase | mm | 4400 | ||
Min. ground clearance | mm | 250 | ||
Engine | Model |
| WD10G220 | |
Rated power/rotate speed | KW/r.pm | 162/2200 | ||
Max. torque/rotate speed | N.m/r.pm | 850/1450 | ||
Note: the above data are subject to change without prior notice.
