- Size: 98CBM
- Place of Origin: China
- Brand Name: SOCMA
- Model Number: HNF-180 (CPCD180)
- Weight: 30000.000 kg

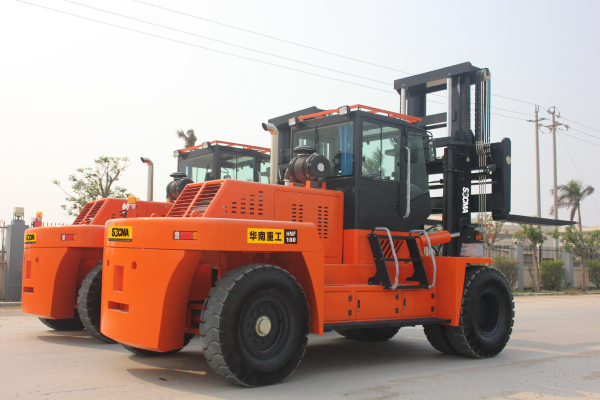

18 Ton Forklift (Model HNF-180)
Main configuration:
Engine: Weichai WD10G220E ngine, strong power, low fuel consumption,high-quality turbo-charged engine.
Transmission & torque convert: imported technology, reliable performance, convenient maintenance, smooth transmission, and convenient operation
Driven axle : reinforced driven axle, hub reduction, high strength axle case, large load capacity, excellent stability and reliability.
Steering system: adopt transverse oil cylinder type steering bridge, full-hydraulic steering, flexible and light, reliable.
Braking system: use mature product from professional manufacturer, disc brakes, heat dissipation faster, light, simple structure and easy to adjust. Especially have very good thermostability performance when heavy loaded, braking effect stable.
Control system: pilot valve control device to make the work efficiency and reduce drivers’ labor intensity
Hydraulic system: double pump confluence, small system flow, low power consumption, reliable performance, excellent operating performance
Explosion proof safety valve for pipeline :avoid the pipeline bursting suddenly, ensure system working safety and reliability.
Cooling system: adopt independent transmission oil and hydraulic oil cooling, increasing system stability
Frame structure: Exquisite workmanship &firm box-type frame, improve the transverse, longitudinal stability of vehicles. The vehicle get through the 3D finite element analysis, superior structure, reliable quality; the main welding parts through the nondestructive testing, effective coordination with the reinforced structure、bridge、box.
Tyre : sino-us joint brand, resistant to wear and sting, high strength tyres, bear heavy loaded - safe and reliable
Fork: hydraulic fork positioner, easy operation and reduce drivers’ labor intensity
Mast: box-type internal-external mast, special all-round roller bearings, increase lifting performance
Cab: with air-conditioning and heating, and rupture membrane, explosion proof, heat insulation, prevent glare, sound insulation. Damping luxury cab with sunroof, wide view and comfortable seats, flexible control.
Parameters:
Configuration | Model | Unit | HNF-180 | |
Performance | Rated load |
| 18000 | |
Load center |
| 900 | ||
Free lift | mm | 0 | ||
Mast tilt angle (front/rear) | º | 6/12 | ||
Overall dimensions | Length with fork | mm | 8340 | |
Width | mm | 3050 | ||
Mast height (fork lower) | mm | 5110 | ||
Mast lifting height | mm | 6000 | ||
Fork size (L*W*H) | mm | 2000X260X100 | ||
Min. turning radius | mm | 6250 | ||
Max. travel speed (with load) | Km/h | 28 | ||
Lifting speed (with load) | mm/s | 260 | ||
Gradeability (with load) | % | 20 | ||
Weight | Kg | 32000 | ||
Tyre | Front |
| 4X14.00-24/24PR | |
Rear |
| 2X14.00-24/24PR | ||
Wheel tread | Front | mm | 2200 | |
Rear | mm | 2390 | ||
Wheelbase | mm | 4000 | ||
Min. ground clearance | mm | 250 | ||
Engine | Model |
| WD10G220E | |
Rated power/rotate speed | KW/r.pm | 162/2200 | ||
Max. torque/rotate speed | N.m/r.pm | 850/1450 |
Note: the above data are subject to change without prior notice.
